NINGBO ELECTRIC AND CONSUMER GOODS
LED BLUB

LED BLUB

TIME: 2017-07-13 Browse times：
LED BLUB

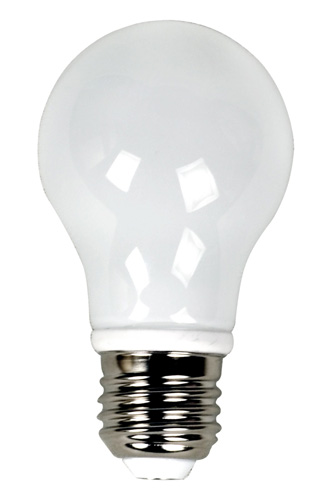

A55-4.5W

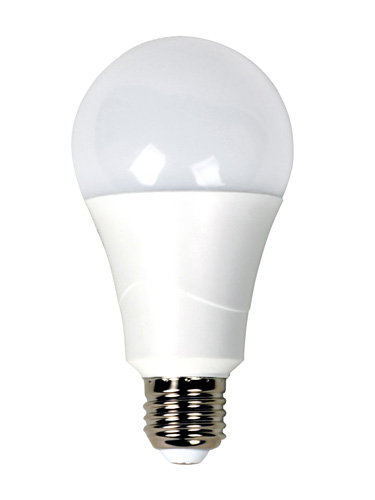

A80/18W-ADC/ 20-ADCW

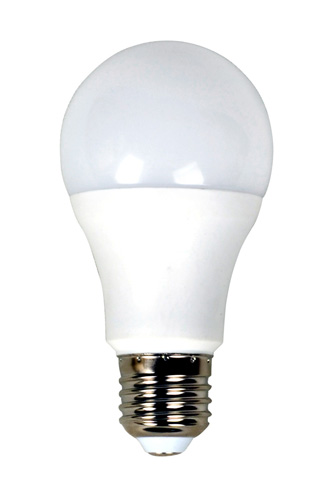

A60-5W 7W 9W 10W 12W

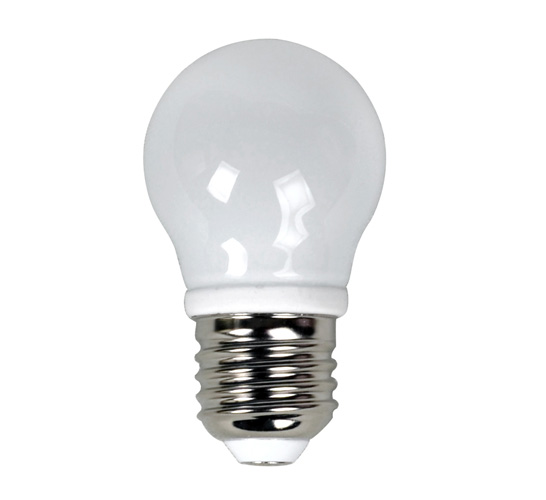

P45-4W
MODEL Voltage Power Lumen CRI Color
Temp		 Base PF Product Size
Φ×H(mm)
P45-4W 120/230V 4W 360Lm ≥80 2700-6500K E27 ＞0.5 Φ45×H83mm
A55-5W 120/230V 4.5W 405Lm ≥80 2700-6500K E27 ＞0.5 Φ60×H100mm
A60-5W 120/230V 5W 450Lm ≥80 2700-6500K E27 ＞0.5 Φ60×H110mm
A70-7W 120/230V 7W 630Lm ≥80 2700-6500K E27 ＞0.5 Φ60×H110mm
A60-9W 120/230V 9W 800Lm ≥80 2700-6500K E27 ＞0.5 Φ60×H110mm
A60-10W 120/230V 10W 900Lm ≥80 2700-6500K E27 ＞0.5 Φ60×H110mm
A60-12W 120/230V 12W 1000Lm ≥80 2700-6500K E27 ＞0.5 Φ60×H110mm
A60-12W-ADC 120/230V 12W 1000Lm ≥80 2700-6500K E27 ＞0.5 Φ60×H115mm
A60-15W-ADC 120/230V 15W 1350Lm ≥80 2700-6500K E27 ＞0.5 Φ60×H115mm


A60-SE-7W


A60-Blue-7W

A60-Green-7W

A60-Red-7W

A60-Yellow-7W

A70-15W

A70-15W-H

A80-18W

A80-18W-ADC--20W-ADC

A95-25W

MODEL Voltage Power Lumen CRI Color
Temp		 Base PF Product Size
Φ×H(mm)
A60-SE-7W 120/230V 7W 560Lm ≥80 2700-6500K E27 ＞0.5 Φ45×H183mm
A60-7W 120/230V 7W 560Lm ≥80 2700-6500K E27 ＞0.5 Φ60×H103mm
A70-15W 120/230V 15W 1350Lm ≥80 2700-6500K E27 ＞0.5 Φ70×H130mm
A70-15W-H 120/230V 15W 1350Lm ≥80 2700-6500K E27 ＞0.5 Φ70×H113mm
A80-18W 120/230V 18W 1600Lm ≥80 2700-6500K E27 ＞0.5 Φ80×H154mm
A80-18W-ADC 120/230V 18W 1600Lm ≥80 2700-6500K E27 ＞0.5 Φ80×H154mm
A60-20W-ADC 120/230V 20W 1800Lm ≥80 2700-6500K E27 ＞0.5 Φ80×H154mm
A90-25W 120/230V 25W 2200Lm ≥80 2700-6500K E27 ＞0.5 Φ95×H160mm


G45-E14-5W 6W G45-E27-5W 6W G95S-12W 15W Silerver G95W-12W 15W WHITE G120-18W 20W

MODEL Voltage Power Lumen CRI Color
Temp		 Base PF Product Size
Φ×H(mm)
G45-5W 120/230V 5W 450Lm ≥80 2700-6500K E14/E27 ＞0.5 Φ45×H80mm
G45-6W 120/230V 6W 540Lm ≥80 2700-6500K E14/E27 ＞0.5 Φ45×H80mm
G95-12W 120/230V 12W 1050Lm ≥80 2700-6500K E27 ＞0.5 Φ95×H135mm
G95-15W 120/230V 15W 1350Lm ≥80 2700-6500K E27 ＞0.5 Φ95×H135mm
G120-18W 120/230V 18W 1600Lm ≥80 2700-6500K E27 ＞0.5 Φ120×H150mm
G120-20W 120/230V 20W 1800Lm ≥80 2700-6500K E27 ＞0.5 Φ120×H150mm

C37-E14-5W C37-E27-6W C37FL-E14-5W C37FL-E27-6W

MODEL Voltage Power Lumen CRI Color
Temp		 Base PF Product Size
Φ×H(mm)
C37-5W 120/230V 5W 450Lm ≥80 2700-6500K E14/E27 ＞0.5 Φ37×H100mm
C37-6W 120/230V 6W 540Lm ≥80 2700-6500K E14/E27 ＞0.5 Φ37×H100mm
C37FL-5W 120/230V 5W 450Lm ≥80 2700-6500K E14/E27 ＞0.5 Φ37×H124mm
C37FL-6W 120/230V 6W 540Lm ≥80 2700-6500K E14/E27 ＞0.5 Φ37×H124mm


MI-T-8W MI-T-10W MI-T-12W

TPAL-9W 12W 15W 18W T80-20W T100-30W T120-40W T150-70W

MODEL Voltage Power Lumen CRI Color
Temp		 Base PF Product Size
Φ×H(mm)
MI-T-8W 120/230V 8W 700Lm ≥80 2700-6500K E14
E27
G24		 ＞0.5 Φ36×H120mm
MI-T-10W 120/230V 10W 900Lm ≥80 2700-6500K E14
E27
G24		 ＞0.5 Φ42×H110mm
MI-T-12W 120/230V 12W 1050Lm ≥80 2700-6500K E27
G24		 ＞0.5 Φ44×H135mm
TPAL-9W 120/230V 9W 800Lm ≥80 2700-6500K E27 ＞0.5 Φ50×H101mm
TPAL-12W 120/230V 12W 1050Lm ≥80 2700-6500K E27 ＞0.5 Φ60×H114mm
TPAL-15W 120/230V 15W 1350Lm ≥80 2700-6500K E27 ＞0.5 Φ70×H129mm
TPAL-18W 120/230V 18W 1600Lm ≥80 2700-6500K E27 ＞0.5 Φ90×H150mm
TPAL-24W 120/230V 24W 2100Lm ≥80 2700-6500K E27 ＞0.5 Φ120×H190mm
T80-20W 120/230V 20W 1600Lm ≥80 2700-6500K E27 ＞0.5 Φ80×H120mm
T100-30W 120/230V 30W 2400Lm ≥80 2700-6500K E27 ＞0.5 Φ100×H180mm
T120-40W 120/230V 40W 3200Lm ≥80 2700-6500K E27 ＞0.5 Φ120×H210mm
T120-50W 120/230V 50W 4000Lm ≥80 2700-6500K E27 ＞0.5 Φ120×H210mm
T150-70W 120/230V 70W 5600Lm ≥80 2700-6500K E27 ＞0.5 Φ150×H260mm


R39-5W R50-7W R63-9W R80-12W R95-18W R50-ADC-7W R63-ADC-9W R80-ADC-12W REF-12W/18W24W/36W/50W


MODEL Voltage Power Lumen CRI Color
Temp		 Base PF Product Size
Φ×H(mm)
R39-5W 120/230V 5W 450Lm ≥80 2700-6500K E14 ＞0.5 Φ39×H68mm
R50-7W 120/230V 7W 630Lm ≥80 2700-6500K E14 ＞0.5 Φ50×H88mm
R63-9W 120/230V 9W 800Lm ≥80 2700-6500K E14 ＞0.5 Φ63×H103mm
R80-12W 120/230V 12W 1000Lm ≥80 2700-6500K E14 ＞0.5 Φ80×H110mm
R95-18W 120/230V 18W 1600Lm ≥80 2700-6500K E14 ＞0.5 Φ95×H129mm
R39-5W-ADC 120/230V 5W 450Lm ≥80 2700-6500K E14 ＞0.5 Φ39×H68mm
R50-7W-ADC 120/230V 7W 630Lm ≥80 2700-6500K E14 ＞0.5 Φ50×H88mm
R63-9W-ADC 120/230V 9W 800Lm ≥80 2700-6500K E27 ＞0.5 Φ63×H103mm
R80-12W-ADC 120/230V 12W 1000Lm ≥80 2700-6500K E27 ＞0.5 Φ80×H110mm
R95-18W-ADC 120/230V 18W 1600Lm ≥80 2700-6500K E27 ＞0.5 Φ95×H129mm
REF-12W 120/230V 12W 1050Lm ≥80 2700-6500K E27 ＞0.5 Φ90×H90mm
REF-18W 120/230V 18W 1600Lm ≥80 2700-6500K E27 ＞0.5 Φ119×H90mm
REF-24W 120/230V 24W 2100Lm ≥80 2700-6500K E27 ＞0.5 Φ151×H105mm
REF-36W 120/230V 36W 3200Lm ≥80 2700-6500K E27 ＞0.5 Φ170×H105mm
REF-50W 120/230V 50W 4500Lm ≥80 2700-6500K E27 ＞0.5 Φ250×H105mm


PAR20-8x1W PAR30-1-COB-12x1W PAR38-18x1W PAR30-2-COB-12W PAR38-2-COB-18W



MODEL Voltage Power Lumen CRI Color
Temp		 Beam Angle Base PF Product Size
Φ×H(mm)
PAR20-8×1W 120/230V 8W 600Lm ≥80 2700-6500K 38° E27 ＞0.9 Φ63×H83mm
PAR30-12×1W 120/230V 12W 900Lm ≥80 2700-6500K 38° E27 ＞0.9 Φ95×H100mm
PAR38-18×1W 120/230V 18W 1400Lm ≥80 2700-6500K 38° E27 ＞0.9 Φ120×H131mm
PAR20-2-COB-8W 120/230V 8W 560Lm ≥80 2700-6500K 38° E27 ＞0.9 Φ63×H85mm
PAR20-2-COB-12W 120/230V 12W 960Lm ≥80 2700-6500K 38° E27 ＞0.9 Φ95×H119mm
PAR20-2-COB-18W 120/230V 18W 1400Lm ≥80 2700-6500K 38° E27 ＞0.9 Φ120×H138mm



FS-5W 7W 9W 12W 16W 20W 24W 30W LED-3U-3.5W/6.5W/9W/11W   LED-4U-15W/20W/25W   LED-5U-30W


LED-LT-30W LED-LT-36W LED-LT-40W LED-T-50W



MODEL Voltage Power Lumen CRI Color
Temp		 Base PF Product Size
Φ×H(mm)
LED-3U-3.5W 120/230V 3.5W 350Lm ≥80 2700-6500K E27 ＞0.5 Φ42×H114mm
LED-3U-6.5W 120/230V 6.5W 650Lm ≥80 2700-6500K E27 ＞0.5 Φ52×H140mm
LED-3U-9W 120/230V 9W 900Lm ≥80 2700-6500K E27 ＞0.5 Φ52×H160mm
LED-3U-11W 120/230V 11W 1100Lm ≥80 2700-6500K E27 ＞0.5 Φ52×H175mm
LED-4U-15W 120/230V 15W 1500Lm ≥80 2700-6500K E27 ＞0.5 Φ58×H206mm
LED-4U-20W 120/230V 20W 2000Lm ≥80 2700-6500K E27 ＞0.5 Φ58×H210mm
LED-4U-25W 120/230V 25W 2500Lm ≥80 2700-6500K E27 ＞0.5 Φ72×H225mm
LED-5U-30W 120/230V 30W 3000Lm ≥80 2700-6500K E27 ＞0.5 Φ72×H225mm
FS-LED-5W 120/230V 5W 500Lm ≥80 2700-6500K E27 ＞0.5 Φ48×H105mm
FS-LED-7W 120/230V 7W 700Lm ≥80 2700-6500K E27 ＞0.5 Φ48×H112mm
FS-LED-9W 120/230V 9W 900Lm ≥80 2700-6500K E27 ＞0.5 Φ48×H117mm
FS-LED-12W 120/230V 12W 1200Lm ≥80 2700-6500K E27 ＞0.5 Φ59×H141mm
FS-LED-16W 120/230V 16W 1600Lm ≥80 2700-6500K E27 ＞0.5 Φ59×H151mm
FS-LED-20W 120/230V 20W 2000Lm ≥80 2700-6500K E27 ＞0.5 Φ59×H171mm
FS-LED-24W 120/230V 24W 2400Lm ≥80 2700-6500K E27 ＞0.5 Φ80×H195mm
FS-LED-30W 120/230V 30W 3000Lm ≥80 2700-6500K E27 ＞0.5 Φ80×H205mm
LED-LT-30W 120/230V 30W 2700Lm ≥80 2700-6500K E27 ＞0.5 Φ97×H228mm
LED-LT-36W 120/230V 36W 3240Lm ≥80 2700-6500K E27/E40 ＞0.5 Φ116×H274mm
LED-LT-40W 120/230V 40W 3600Lm ≥80 2700-6500K E27/E40 ＞0.5 Φ135×H228mm
LED-LT-50W 120/230V 50W 4500Lm ≥80 2700-6500K E27/E40 ＞0.5 Φ135×H269mm


GU10-3-FAKE COB 5W 6W 7W 9W MR16-3-SMD-5W-6W-7W-9W MR16-4-SMD5W-7W GU10-4-SMD-5W-7w E27-4-SMD-5W-7W


MODEL Voltage Power Lumen CRI Color
Temp		 Beam Angle Base PF Product Size
Φ×H(mm)
GU10-3-SMD5W 120/230V 5W 420-450Lm ≥80 2700-6500K 120° GU10 ＞0.5 Φ50×H55mm
GU10-3-SMD6W 120/230V 6W 470-500Lm ≥80 2700-6500K 120° GU10 ＞0.5 Φ50×H55mm
GU10-3-SMD7W 120/230V 7W 550-600Lm ≥80 2700-6500K 120° GU10 ＞0.5 Φ50×H55mm
GU10-3-SMD9W 120/230V 9W 700-720Lm ≥80 2700-6500K 120° GU10 ＞0.5 Φ50×H55mm
MR16-3-SMD5W 12/120/230V 5W 420-450Lm ≥80 2700-6500K 120° MR16 ＞0.5 Φ50×H55mm
MR16-3-SMD6W 12/120/230V 6W 470-500Lm ≥80 2700-6500K 120° MR16 ＞0.5 Φ50×H55mm
MR16-3-SMD7W 12/120/230V 7W 550-600Lm ≥80 2700-6500K 120° MR16 ＞0.5 Φ50×H55mm
MR16-3-SMD9W 12/120/230V 9W 700-720Lm ≥80 2700-6500K 120° MR16 ＞0.5 Φ50×H55mm
MR16-4-SMD5W 12/120/230V 5W 420-450Lm ≥80 2700-6500K 120° GU5.3 ＞0.5 Φ50×H55mm
MR16-4-SMD7W 12/120/230V 7W 550-600Lm ≥80 2700-6500K 120° GU5.3 ＞0.5 Φ50×H55mm
GU10-4-SMD5W 120/230V 5W 420-450Lm ≥80 2700-6500K 120° GU10 ＞0.5 Φ50×H55mm
GU10-4-SMD7W 120/230V 7W 550-600Lm ≥80 2700-6500K 120° GU10 ＞0.5 Φ50×H55mm
E27-4-SMD5W 12/120/230V 5W 420-450Lm ≥80 2700-6500K 120° E27 ＞0.5 Φ50×H70mm
E27-4-SMD7W 12/120/230V 7W 550-600Lm ≥80 2700-6500K 120° E27 ＞0.5 Φ50×H70mm




GU10-COB5W/7W MR16-COB5W-7W GU10-SMD5W/7W MR16-SMD5W/7W


MODEL Voltage Power Lumen CRI Color
Temp		 Beam Angle Base PF Product Size
Φ×H(mm)
GU10-COB5W 120/230V 5W 350-380Lm ≥80 2700-6500K 38° GU10 ＞0.5 Φ50×H55mm
GU10-COB7W 120/230V 7W 450-490Lm ≥80 2700-6500K 38° GU10 ＞0.5 Φ50×H55mm
MR16-COB5W 12/120/230V 5W 350-380Lm ≥80 2700-6500K 38° MR16 ＞0.5 Φ50×H55mm
MR16-COB7W 12/120/230V 7W 450-490Lm ≥80 2700-6500K 38° MR16 ＞0.5 Φ50×H55mm
GU10-SMD5W 120/230V 5W 350-380Lm ≥80 2700-6500K 38° GU10 ＞0.5 Φ50×H55mm
GU10-SMD7W 120/230V 7W 450-490Lm ≥80 2700-6500K 38° GU10 ＞0.5 Φ50×H55mm
MR16-SMD5W 12/120/230V 5W 350-380Lm ≥80 2700-6500K 38° MR16 ＞0.5 Φ50×H55mm
MR16-SMD7W 12/120/230V 7W 450-490Lm ≥80 2700-6500K 38° MR16 ＞0.5 Φ50×H55mm


GU10-2-SMD-5W-6W-7W-9W GU10S-2-SMD5W-6W-7W-9W MR16-2-SMD-5W-6W-7W-9W


MODEL Voltage Power Lumen CRI Color
Temp		 Beam Angle Base PF Product Size
Φ×H(mm)
GU10-2-SMD5W 120/230V 5W 420-450Lm ≥80 2700-6500K 120° GU10 ＞0.5 Φ50×H55mm
GU10-2-SMD6W 120/230V 6W 470-500Lm ≥80 2700-6500K 120° GU10 ＞0.5 Φ50×H55mm
GU10-2-SMD7W 120/230V 7W 550-600Lm ≥80 2700-6500K 120° GU10 ＞0.5 Φ50×H55mm
GU10-2-SMD9W 120/230V 9W 700-720Lm ≥80 2700-6500K 120° GU10 ＞0.5 Φ50×H55mm
MR16-2-SMD5W 12/120/230V 5W 420-450Lm ≥80 2700-6500K 120° GU5.3 ＞0.5 Φ50×H55mm
MR16-2-SMD6W 12/120/230V 6W 470-500Lm ≥80 2700-6500K 120° GU5.3 ＞0.5 Φ50×H55mm
MR16-2-SMD7W 12/120/230V 7W 550-600Lm ≥80 2700-6500K 120° GU5.3 ＞0.5 Φ50×H55mm
MR16-2-SMD9W 12/120/230V 9W 700-720Lm ≥80 2700-6500K 120° GU5.3 ＞0.5 Φ50×H55mm

MR16-4x1W MR16-5X1W GU10-5-COB-7W MR16-5-COB7W
MODEL Voltage Power Lumen CRI Color
Temp		 Beam Angle Base PF Product Size
Φ×H(mm)
GU10-4×1W 120/230V 4W 300Lm ≥80 2700-6500K 38° GU10 ＞0.5 Φ50×H53mm
GU10-5×1W 120/230V 5W 400Lm ≥80 2700-6500K 38° GU10 ＞0.5 Φ50×H53mm
MR16-4×1W 12/120/230V 4W 300Lm ≥80 2700-6500K 38° GU5.3 ＞0.5 Φ50×H53mm
MR16-5×1W 12/120/230V 5W 400Lm ≥80 2700-6500K 38° GU5.3 ＞0.5 Φ50×H53mm
GU10-5-COB7W 120/230V 7W 560Lm ≥80 2700-6500K 38° GU10 ＞0.5 Φ50×H53mm
MR16-5-COB7W 120/230V 7W 560Lm ≥80 2700-6500K 38° GU5.3 ＞0.5 Φ50×H53mm

A60FL-4W-6W-8W C35FL-2W-4W


MODEL Voltage Power Lumen CRI Color Color
Temp		 Base Product Size
Φ×H(mm)
A60FL-4W 110/240V 4W 450Lm ≥80 Clear 2700/4000K/6400K E27 Φ60×H110mm
A60FL-6W 110/240V 6W 650Lm ≥80 Clear 2700/4000K/6400K E27 Φ60×H110mm
A60FL-8W 110/240V 8W 850Lm ≥80 Clear 2700/4000K/6400K E27 Φ60×H110mm
C35FL-2W 110/240V 2W 220Lm ≥80 Clear 2700/4000K/6400K E14/E27 Φ35×H98mm
C35FL-4W 110/240V 4W 450Lm ≥80 Clear 2700/4000K/6400K E14/E27 Φ35×H98mm


G45FL-2W ST64FL-4W 6W 8W ST64FL-GD-4W-6W-8W

MODEL Voltage Power Lumen CRI Color Color
Temp		 Base Product Size
Φ×H(mm)
G45FL-2W 110/240V 2W 220Lm ≥80 Clear 2700/4000K/6400K E27 Φ45×H80mm
ST64FL-4W 110/240V 4W 450Lm ≥80 Clear 2700/4000K/6400K E27 Φ64×H138mm
ST64FL-6W 110/240V 6W 650Lm ≥80 Clear 2700/4000K/6400K E27 Φ64×H138mm
ST64FL-8W 110/240V 8W 850Lm ≥80 Clear 2700/4000K/6400K E27 Φ64×H138mm
ST64FL-GD-4W 110/240V 4W 450Lm ≥80 Gold 2700/4000K/6400K E27 Φ64×H138mm
ST64FL-GD-6W 110/240V 6W 650Lm ≥80 Gold 2700/4000K/6400K E27 Φ64×H138mm
ST64FL-GD-8W 110/240V 8W 850Lm ≥80 Gold 2700/4000K/6400K E27 Φ64×H138mm

G80FL-4W-6W-8W G95FL-4W-6W-8W G125FL-4W-6W-8W

MODEL Voltage Power Lumen CRI Color Color
Temp		 Base Product Size
Φ×H(mm)
G80FL-4W 110/240V 4W 450Lm ≥80 Clear 2700/4000K/6400K E27 Φ80×H114mm
G80FL-6W 110/240V 6W 650Lm ≥80 Clear 2700/4000K/6400K E27 Φ80×H114mm
G80FL-8W 110/240V 8W 850Lm ≥80 Clear 2700/4000K/6400K E27 Φ80×H114mm
G95FL-4W 110/240V 4W 450Lm ≥80 Clear 2700/4000K/6400K E27 Φ95×H135mm
G95FL-6W 110/240V 6W 650Lm ≥80 Clear 2700/4000K/6400K E27 Φ95×H135mm
G95FL-8W 110/240V 8W 850Lm ≥80 Clear 2700/4000K/6400K E27 Φ95×H135mm
G125FL-4W 110/240V 4W 450Lm ≥80 Clear 2700/4000K/6400K E27 Φ125×H170mm
G125FL-6W 110/240V 6W 650Lm ≥80 Clear 2700/4000K/6400K E27 Φ125×H170mm
G125FL-8W 110/240V 8W 850Lm ≥80 Clear 2700/4000K/6400K E27 Φ125×H170mm


DL01-SMD-5W-7W-10W-15W-20W-24W

MODEL Voltage Power Lumen RA LED Type Material
Temp		 Unite Size Cut Hole Size
DL01-SMD-5W 85-265V 5W 500Lm ≥80 SMD2835 Aluminium Φ90×H55mm Φ75mm
DL01-SMD-7W 85-265V 7W 700Lm ≥80 SMD2835 Aluminium Φ100×H60mm Φ90mm
DL01-SMD-10W 85-265V 10W 800Lm ≥80 SMD2835 Aluminium Φ130×H65mm Φ115mm
DL01-SMD-15W 85-265V 15W 1200Lm ≥80 SMD2835 Aluminium Φ160×H70mm Φ140mm
DL01-SMD-20W 85-265V 20W 1600Lm ≥80 SMD2835 Aluminium Φ165×H75mm Φ150mm
DL01-SMD-24W 85-265V 24W 1900Lm ≥80 SMD2835 Aluminium Φ190×H75mm Φ175mm


DL02-SMD-12W 20W 30W DL02-COB-12W-20W-30W

MODEL Voltage Power Lumen RA LED Type Material
Temp		 Unite Size Cut Hole Size
DL02-SMD-12W 85-265V 12W 840Lm ≥80 SMD2835 Aluminium Φ145×H63mm Φ125mm
DL02-SMD-20W 85-265V 20W 1400Lm ≥80 SMD2835 Aluminium Φ195×H63mm Φ170mm
DL02-SMD-30W 85-265V 30W 2100Lm ≥80 SMD2835 Aluminium Φ245×H63mm Φ210mm
DL02-COB-12W 85-265V 12W 840Lm ≥80 COB Aluminium Φ145×H63mm Φ125mm
DL02-COB-20W 85-265V 20W 1400Lm ≥80 COB Aluminium Φ195×H63mm Φ170mm
DL02-COB-30W 85-265V 30W 2100Lm ≥80 COB Aluminium Φ245×H63mm Φ210mm


IPA-10W 30W 50W 100W 150W
MODEL Voltage Power Lumen RA Light Soure PF Color Body Product Size
L×W×H
IPA-10W 120/230V 10W 960Lm ≥80 ＞0.9 White/Black 130×95×20mm
IPA-20W 120/230V 20W 1600Lm ≥80 ＞0.9 White/Black 200×135×25mm
IPA-30W 120/230V 30W 2400Lm ≥80 ＞0.9 White/Black 200×135×25mm
IPA-50W 120/230V 50W 4000Lm ≥80 ＞0.9 White/Black 250×165×30mm
IPA-100W 120/230V 100W 8000Lm ≥80 ＞0.9 White/Black 300×205×40mm
IPA-150W 120/230V 150W 12000Lm ≥80 ＞0.9 White/Black 360×235×45mm



SPOT-10W/20W/30W/50W/80W/100W

MODEL Voltage Power Lumen RA Light Soure PF Color Body Product Size
L×W×H
SPOT-10W 85-265V 10W 650Lm ≥80 COB ≥0.5 Grey/Black 115×85×85mm
SPOT-20W 85-265V 20W 1400Lm ≥80 COB ≥0.5 Grey/Black 180×140×100mm
SPOT-30W 85-265V 30W 2100Lm ≥80 COB ≥0.5 Grey/Black 225×183×125mm
SPOT-50W 85-265V 50W 3500Lm ≥80 COB ≥0.5 Grey/Black 285×235×145mm
SPOT-80W 85-265V 80W 5600Lm ≥80 COB ≥0.5 Grey/Black 285×265×112mm
SPOT-100W 85-265V 150W 7000Lm ≥80 COB ≥0.5 Grey/Black 285×265×112mm


DLELPR-10W
DLELPS-10W

DLELPS-2×10W
DLELPS-3×10W

DLELPR-18W
DLELPS-18W

DLELPS-2×18W
DLELPS-3×18W


DL-2W
DL-2×2W
DL-5×2W


DL-10×2W
DL-15×2W







TEL: +86-574-88566850

ADD：136 LANE SHUNDE ROAD HAISHU NINGBO CHINA

NINGBO ELECTRIC AND CONSUMER GOODS
